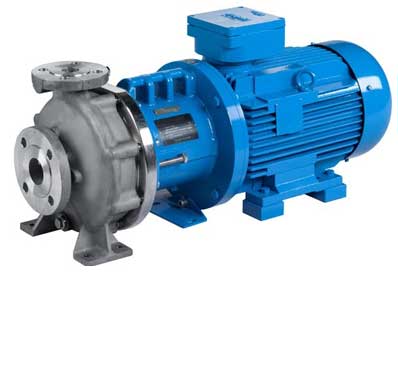

Magnetic Dirve Sealless Pump-MD Series

Brief of Product

Magnet drive designs have become the standard for applications requiring corrosion resistant pumps. Our magnet drive pump designs offer a wide range of capabilities from compact OEM configurations to our large chemical process pump series. This broad range of magnet drive pump capabilities is unmatched in the industry making us the leader in magnet drive pump technology.

INDUSTRIES SERVED :

We have state-of-the-art infrastructure, which serves as the backbone of our firm and allows us to fabricate best quality products. This unit is well equipped with sophisticated and technically advanced machinery that help us in smooth functioning and timely delivery. Some of the key machines installed in our unit are Auto Winding Machines, Motor Assembly Machine, CNC Operating Machine and Plant. Furthermore, these machines deliver high performance and ensure low maintenance. All the technical facilities are operated under the guidance of skilled and qualified professionals. Owing to all these attributes, we have achieved a noticeable position in the industry.

Furthermore, to maintain a conducive working environment, we have segregated our infrastructure into various departments that are as follows:



  • Chemical Plant / Chemical Circulation
  • Various Metal Recovery Systems
  • Water Treatment Plant
  • Colour Photo Processing
  • Textile Processing & Dye Baths
  • Galvanising/Anodising Plating Plats
  • Etching/Spark Erosion Machines
  • Food Processing: Dairy, Soft Drink, Beverages
  • Metal Finishing
  • Chilling Plant
  • T.V. Tube Processing
  • X-Ray Film
  • Electroplating Plant
  • Pharmaceutical Industries
  • PCB Plants

AERON SEALLESS PUMPS ADVANTAGES

  • Seal less Design- Total product Containment-ideal for hydrocarbons, petrochemicals, toxic, hot, cold, valuable products etc.
  • Interchangeable wet end, designed for max head/flow coverage across all product range
  • Choice of various metallic material of construction Choice of various metallic material of construction
  • One joint casing/coupling housing design
  • Casing gasket fully confined to eliminate `Blowout' risk
  • Various Suction and Discharge Flange connection options
  • Maximum interchangeability exists between spare parts
  • Cartridge assemblies allowing fast replacement of the rotating equipment

The Overall benefit package this range brings to the user are:

  • Ease of Application
  • Low Capital Cost
  • Design ensures safe, leak free operation
  • Low running costs
  • Minimal Spare holding
  • Minimal downtime / fast maintenance
  • Maximizes on-line process time

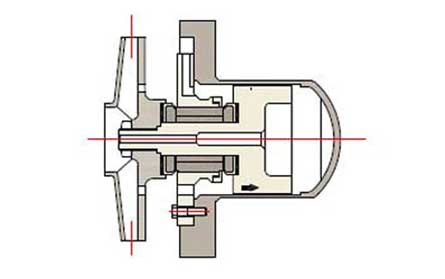

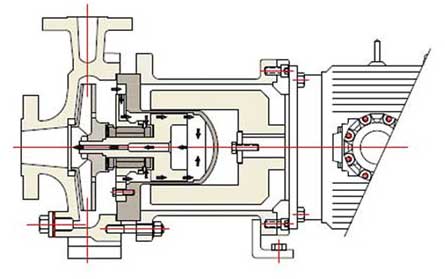

Internal Flow
The pump is taken from the discharge side of the impeller and fed back through the inner magnet; the isolation shell and the prod act wetted bearings to both cool and lubricate the drive assembly.

The recirculation flow for any Magnetic Drive pump has three basic functions

  • Removal of the heat generated from magnetic losses;
  • Lubrication of the internal radial & thrust bearings;
  • Thrust balancing of the free floating matting assembly

To successfully meet these requirements, the circulated pump age most remain in the liquid phase at all points within the magnetic coupling area.

Cartridge Replacements

  • The low cost alternative to a standby pump
  • Onsite installation is straight forward using your own staff
  • Your used cartridge can be refurbished & returned
  • Cartridge replacements keep your spares inventory low
  • Cost effective standby for multi pump installations
  • Replacement cartridge fully complies with original pump specification, ensuring maximum integrity

There has never been a more cost effective way to keep plant inventory at a manageable level than with a AERON replacement cartridge. As a spare part it is both easy to install and more importantly completely complies with the original technical specifications of your pump. The complete rotating unit is replaced thus assuring the total operational integrity of the pump. Most cartridges can be replaced in less than one hour, keeping downtime and lost production to a minimum.
Features

  • No Seal, No leakage
  • Continuous flow
  • Silent in operation
  • 24 hour running
  • Total eliminating outside contamination. Hence widely used biotech industries.

Sr. No.

Pump Model

Material Of Construction

Motor Power (Hp)

Motor rpm

Phase

End Connection

Max Flow

Max Head

PP MOC

1

MDP-15

GFRPP

3/16

2800

14x14mm Nozzle Type

15 LPM

2.5 Meter

2

MDP-30

GFRPP

1/4

2800

18x18mm Nozzle Type

30 LPM

3.4 Meter

3

MDP-50

GFRPP

5/16

2800

20x20mm Nozzle Type

50 LPM

4.5 Meter

4

MDP-85

GFRPP

3/8

2800

1"X1"Nozzle Type

85 LPM

9.5 Meter

5

MDP-85

GFRPP

3/8

2800

1"X1"Nozzle Type

85 LPM

9.5 Meter

6

MDP-115

GFRPP

1/2

2800

1"X1"Nozzle Type

100 LPM

11.5 Meter

7

MDP-115

GFRPP

1/2

2800

1"X1"Nozzle Type

100 LPM

11.5 Meter

8

MDP-150

GFRPP

1

2800

1 1/2" Female X 1" Male

150 LPM

14.5 Meter

8

MDP-300

GFRPP

1.5

2800

1.5" Bsp Female X 1.25" Bsp Male

280 LPM

20 Meter

9

MDP-520

GFRPP

3

2800

 2" Npt Male X 1.5" Npt Male

520 LPM

26 Meter

PVDF MOC

10

MDPV-115

PVDF

1/2

2800

1"X1"Nozzle Type

100 LPM

11.5 Meter

11

MDPV-115

PVDF

1/2

2800

1"X1"Nozzle Type

100 LPM

11.5 Meter

12

MDPV-300

PVDF

1.5

2800

1.5" Bsp Female X 1.25" Bsp Male

280 LPM

20 Meter

SS MOC

13

MDS-50

SS 316

5/16

2800

3/4" Bsp Female X 1/2" Bsp Male

54 LPM

4.5 Meter

14

MDS-115

SS 316

0.5

2800

1" X 1" Nozzle Type

100 LPM

11.5 Meter

15

MDS-150

SS 316

1

2800

1.5" Bsp Female X 1" Bsp Male

150 LPM

14.5 Meter

16

MDS-300A

SS 316

1.5

2800

2" Bsp Female X 11/4" Bsp Male

280 LPM

20 Meter

17

MDS-300B

SS 316

2

2800

2" Bsp Female X 11/4" Bsp Male

320 LPM

22 Meter

18

MDS-555

SS 316

5

2800

2 NPT Male x 1 1/2" NPT Male

660 LPM

30 Meter

These parameters depend on size of pump

Temperature

Max 150oc

Solid Size

Max 0.2 mm

Sp Gravity

Max 1.5

Solid %

Max 10%

Viscosity

2000 CP

Suction required

Flooded cannot run dry.

Non self-priming

View Below PDF

Performance

Chemical Formula Stainless Steel Polypropylene PVDF
1-Chloronaphthalene C10H7Cl B X
1-Nitropropane CH3(CH2)2NO2 A
Acetaldehyde (Ethanal) CH3CHO A C A 150°F
Acetamide (Acetic Acid Amide)  CH3CONH2 X A A 140°F
Acetate Solvents CH3COOR A X A
Acetic Acid _ 20%   A B X
Acetic Acid _ 30%   A
Acetic Acid _ 50% CH3COOH A
Acetic Acid _ Glacial CH3COOH A C A 120°F
Acetic Anhydride (Acetic Oxide) (CH3CO)2O A X B 70°F
Acetone (Dimethylketone) CH3COCH3 A X X
Acetone Cyanohydrin (CH3)2C(OH)CN B
Acetonitrile (Methyl Cyanide) CH3CN A   A
Acetophenone (Phenyl Methyl Ketone)  C6H5COCH3 A A  70°F A
Acetyl Acetone (2,4-Pentanedione) CH3COCH2COCH3 B
Acetyl Chloride CH3COCl B X A
Acetyl Salicylic Acid (Aspirin)  (CH3OCO) C6H4COOH  B
Acetylene (Ethyne) HC=CH A X A
Acrolein (Acrylaldehyde) H2C=CHCHO B
Acrylonitrile (Vinyl Cyanide) CH2=CHCN A B A
Adipic Acid (1,4-Butanedicarboxylic Acid)  HOOC(CH2)4 (COOH ) B A A
Alcohols R-OH   A A
Allyl Alcohol (2-Propen-1-ol) CH2CHCH2OH A   A
Allyl Chloride (3-Chloropropene) CH2=CHCH2CI B A 70°F A
Alum (Aluminum Potassium Sulfate Dodecahydrate)  KAI(SO4)2  &1&2H2O B A A
Aluminum Acetate (Burow's Solution)    C A
Aluminum Ammonium Sulfate (Alum)  AINH4(SO4)2   A A
Aluminum Bromide AlBr3     A
Aluminum Chloride AlCl3 B A A
Aluminum Fluoride AlF3 C A A
Aluminum Hydroxide (Alumina Trihydrate)  AI(OH)3 B A A
Aluminum Nitrate Al(NO3)3 &9H2O A 10% A A
Aluminum Potassium Sulfate (Potash Alum)  KAl(SO4)2 A A A
Aluminum Sulfate (Cake Alum)  Al2(SO4)3 A  50% 167°F A A
Amines R-NH2 A B
Ammonia Anhydrous, Liquid NH3 A A A
Ammonia Liquors   A
Ammonium Bifluoride _ 10% NH4HF2 B A A
Ammonium Carbonate (NH4)2CO3 B 70% 212°F A A
Ammonium Casenite   A
Ammonium Chloride (Sal Ammoniac)  NH4Cl B A A
Ammonium Fluoride NH4F B B A
Ammonium Hydroxide (Aqua Ammonia)  NH4OH A 50% A A
Ammonium Metaphosphate   B A A
Ammonium Nitrate NH4NO3 A A A
Ammonium Nitrite NH4NO2   A  70°F A
Ammonium Oxalate (NH4OOC)2 A
Ammonium Persulfate (NH4)2S2O8 A A A
Ammonium Phosphate, Di-Basic (NH4)2HPO4 A A A
Ammonium Phosphate, Monobasic (NH4)H2PO4 B A A
Ammonium Phosphate, Tri-Basic (NH4)3PO4&3H2O B A A
Ammonium Sulfate (NH4)2SO4 A  80% 212°F A A
Ammonium Sulfide (NH4)2S B
Ammonium Sulfite (NH4)2SO3H2O B A
Ammonium Thiocyanate NH4SCN A 50%
Ammonium Thiosulfate (NH4)2S2O3 A 10%
Amyl (1-Pentanol) C4H9CH2OH A B A
Amyl Acetate (Banana Oil) CH3CO2C5H11 A X A 120°F
Amyl Alcohol (Pentyl Alcohol) CH3(CH2)4OH A A A
Amyl Chloride (Chloropentane) CH3(CH2)4CI A X A
Amyl Chloronaphthalene     A
Amyl Phenol C6H4(OH)C5H11 A
Aniline (Aniline Oil) (Amino Benzene)  C6H5NH2 A A A
Aniline Dyes   B
Aniline Hydrochloride C6H5NH2HCI X X A
Animal Fats & Oils   A   A
Animal Gelatin   A
Anisole (Methylphenyl Ether) C6H5OCH3 B
Anthraquinone C14H8O2 B
Anti-Freeze (Alcohol Base)   A
Anti-Freeze (Glycol Base, Prestone etc)   A
Antimony Pentachloride SbCI5 A
Antimony Trichloride SbCI3 A A A
Aqua Regia (Nitric & Hydrochloric Acid)    X C A
Aroclor PCB mixtures A X
Aromatic Hydrocarbons C6H5R A
Aromatic Solvents (Benzene etc.)    A
Arsenic Acid AsH3O4 B A A
Ascorbic Acid C6H8O6 A
Askarel (Pyranol) PCB mixtures A
Asphalt Hydrocarbons A A A
Asphalt Topping Hydrocarbons A
ASTM _ Ref #1 Oil (High Aniline)  Hydrocarbons A
ASTM _ Ref #2 Oil (Medium Aniline)  Hydrocarbons A
ASTM _ Ref #3 Oil (Low Aniline)   Hydrocarbons A
ASTM _ Ref #4 Oil (High Aniline)  Hydrocarbons A
ASTM _ Ref Motor Fuel A (Aliphatic)  Hydrocarbons A
ASTM _ Ref Motor Fuel B (30% Aromatic)  Hydrocarbons A
ASTM _ Ref Motor Fuel C (50% Aromatic)  Hydrocarbons A
Aviation Gasoline   A
Barbeque Sauce Water, oils, spices A
Barium Carbonate BaCO3 B A A
Barium Chloride Dihydrate BaCl2 &2H2O B 212°F A A
Barium Cyanide Ba(CN)2 A X
Barium Hydroxide (Barium Hydrate)  Ba(OH)2 A 50% 122°F A A
Barium Nitrate Ba(NO3)2 A A A
Barium Sulfate (Blanc Fixe) BaSO4 B A A
Barium Sulfide BaS B A A
Beef Extract   A
Beer Water, carbonate A A 75°F A 175°F
Beet Sugar Liquors (Sucrose)   A A A
Benzaldehyde C6H5CHO A X A
Benzene (Benzol) C6H6 A 167°F X B
Benzene Sulfonic Acid C6H5SO3H A X B 100°F
Benzoic Acid (Benzene Carboxylic Acid)  C6H5COOH B X A
Benzol (Benzene) C6H6 A 167°F X B
Benzoyl Chloride C6H5COCl B   A
Benzyl (Phenylcarbinol) C6H5CH2OH A A A
Benzyl Acetate CH3COZ  CH2C6H5 A
Benzyl Alcohol C6H5CH2OH A A A
Benzyl Benzoate C6H5CO2CH2C6H5 B
Benzyl Chloride (Chlorotoluene) C6H5CH2Cl B X A
Benzyl Dichloride (Benzal Chloride) C6H5CHCl2 A
Bismuth Subcarbonate (Bismuth Carbonate)  (BiO)2CO3 B 10%
Black Sulfate Liquor   A
Bleach Solutions Water, chlorine, oxygen B X
Borax (Sodium Borate) B4Na2O7 A A A
Bordeaux Mixture Copper sulfate salts A
Boric Acid (Boracic Acid) H3BO3 A 30% A A
Brake Fluid (Non-Petroleum Base)  Silicones or glycols  A X
Brewery Slop   A
Brine (Sodium Chloride) Salt water A A A
Bromine _ Anhydrous Br2 X X A 150°F
Bromine Trifluoride BrF3 B X
Bromine Water   X X A
Bromobenzene C6H5Br A X
Bromochloromethane BrCH2Cl B
Bromotoluene C6H4BrCH3 A
Bronzing Liquid   A
Bunker Oil (Fuel) #5, #6 & C Hydrocarbons A
Butadiene C4H6 A X A
Butane (LPG) (Butyl Hydride) C4H10 A X A
Butter Fats A
Buttermilk Fats, water A A A
Butyl (Butanol) C3H7CH2OH A B A
Butyl Acetate CH3CO2(CH2)3CH3 A X A 100°F
Butyl Acetyl Ricinoleate C24H44O5 A
Butyl Acrylate CH2CHCO2C4H9 A   C
Butyl Alcohol (Butanol) CH3(CH2)3OH A A A
Butyl Amine (Aminobutane) CH3(CH2)2CH2NH2 A X B 70°F
Butyl Benzoate C6H5COO(CH2)3CH3 A
Butyl Bromide CH3(CH2)2CH2Br A   A
Butyl Butyrate CH3(CH2)2  CH2CO2C4H9 A
Butyl Cellosolve HOCH2CH2OC4H9     B
Butyl Chloride (Chlorobutane) CH3(CH2)3CL B X A
Butyl Ether (Dibutyl Ether) (CH3(CH2)3)2O A X A 100°F
Butyl Stearate CH3(CH2)16   CO2(CH2)3CH3 B   A
Butylene (Butene) C4H8 A X A
Butyraldehyde CH3(CH2)2CHO A
Butyric Acid CH3(CH2)2CO2H B A A
Butyric Anhydride (CH3CH2CH2CO)2O A
Calcium Acetate Hydrate Ca(CH3COO)2  H2O B
Calcium Bisulfite Ca(HSO3)2 A  90% A A
Calcium Carbonate (Chalk) CaCO3 B A A
Calcium Chlorate Ca(ClO3)2 B 30% A A
Calcium Chloride (Brine) CaCl2 &6H2O A A A
Calcium Hydroxide (Slaked Lime) Ca(OH)2 B 50% A A
Calcium Hypochlorite 20% (Calcium Oxichloride)  Ca(CIO)2 B A A
Calcium Nitrate Ca(NO3)2 B 40%  212°F A A
Calcium Oxide (Unslaked Lime) CaO A
Calcium Silicate Ca2SiO4 B
Calcium Sulfate (Gypsum) CaSO4 A 10% A A
Calcium Sulfide CaS B A 120°F A
Calcium Sulfite CaSO3&2H2O A 10%
Calgon (NaPO3)6 A A
Cane Juice Sucrose, water A X
Cane Sugar Liquors Sucrose, water A A A
Capryl Alcohol (Octanol) CH3(CH2)6CH2OH A
Caprylic Acid (Octanoic Acid) CH3(CH2)6  COOH A   A
Carbitol CH3CH2OCH2CH2OCH2CH2OH A
Carbolic Acid (see Phenol) C6H5OH B C A 150°F
Carbon Dioxide (Carbonic Acid Gas) CO2 A A A
Carbon Disulfide (Carbon Bisulfide)  CS2 A 90% X A
Carbon Monoxide CO A A A
Carbon Tetrachloride (Tetrachloromethane)  CCL4 B X A
Carbonated Beverages CO2/H2O A A A
Carbonic Acid (liquid) H2CO3 B A A
Casein a phosphoprotein B
Castor Oil A mixture of fatty acids A
Catsup (Ketchup)   A A
Cellosolve (Glycol Ethers) HOCH2CH2OR A A  100°F A
Cellulose Acetate C8H12O5 A
Cellulube Hydraulic Fluids (Phosphate Esters)    A
Chlorinated Lime _ 35% Bleach CA(CIO)2 A
Chlorinated Water   B B A
Chlorine Dioxide CIO2 X X A
Chlorine Trifluoride CIF3 A X
Chlorine, Anhydrous Liquid CI2 X X A
Chlorine, Dry CL2   X A
Chlorine, Wet CI2/H2O A X A
Chloroacetic Acid (Monochloroacetic Acid)  CICH2COOH X A A
Chloroacetone (Monochloroacetone)  CICH2cOCH3 B X
Chlorobenzene (Monochlorobenzene)  C6H5CI B X A 150°F
Chlorobromomethane CICH2Br B X
Chlorobutadiene (Chloroprene)  C4H5CL B X
Chloroform CHCI3 A X A
Chlorosulfonic Acid HSO3CL B X X
Chlorothene (Chlorinated Solvents)  CH3CCL3 A
Chlorotrifluoroethylene C2H2CIF3 B
Chocolate syrup Corn syrup, water, sugar A A
Chromic Acid _ 25%-50% H2CrO4 X X A 120°F
Chromic Acid _ Over 50% H2CrO4 X X A 120°F
Chromic Acid _ To 25% H2CrO4 X X A 120°F
Cider (Apple Juice) Sucrose, water A
Cinnamon Oil Cinnamic acid esters A
Citric Acid C6H8O7 H2O A 30% B A 250°F
Citric Oils Citric acid esters A A
Citrus Pectin Liquor   A
Clorox   A B
Clove Oil (Eugenol) C10H12O2 A
Cobalt Chloride CoCI2&6H2O   A
Coconut Oil (Coconut Butter) Fatty acid mixture A
Cod Liver Oil (Fish Oil) Glycerides, acids, esters A
Coffee Fatty oils, acids, ellulose, water A A
Coke Oven Gas H2(&5&3%), CH4 (&2&6%), N2 (&1&1%), CO (&7%) hydrocarbons(&3%)     A
Copper Acetate Cu(c2H3O2)2  CuO  &6H2O B 10%   A
Copper Chloride CuCl2&2H2O X A A
Copper Cyanide CuCN A 10% A A
Copper Nitrate Hexahydrate Cu(NO3)2&6H2O A A A
Copper Sulfate (Blue Copperas) CuSO4&5H2O A 10% A A
Corn Oil (Maize oil) Glycerides of fatty acids B A A
Cotton Seed Oil   A A A
Cream   A A
Creosote, Coal-Tar (Tar Oil) Hydrocarbon mixture B X
Creosote, Wood-Tar Phenol mixture B X
Cresylic Acid (Cresol) C8H10O2 A X A 150°F
Crotonaldehyde CH3CHCHCHO A
Cumeme (Isopropylbenzene) C6H5CH(CH3)2 B
Cutting Oil (Sulfur Base)   A
Cutting Oil (Water Soluble)   A
Cyclohexane C6H12 B X A
Cyclohexanol C6H11OH A B A 150°F
Cyclohexanone C6H10O B X A
Cyclopentane C5H10 B
Decane CH3(CH2)8CH3   A  70°F A
Denatured Alcohol Ethanol and denaturant A A A
Detergent Solutions   A A
Developing Fluids & Solutions   A
Dextrose C6H12O6 A A A
Diacetone (Tyranton) (CH3)2C(OH) CH2COCH3  A X A
Diacetone Alcohol (Diacetone)  (CH3)2COHCH2 COCH3  A X C
Dibenzyl Ether (C6H5CH2)2O B   C
Dibutyl Amine (C4H9)2NH A X B 70°F
Dibutyl Phthalate (DBP) C6H4(CO2C4H9)2 A X X
Dibutyl Sebecate (DBS) C18H34O4 A C
Dichlorobutane C4H8CI2 B
Diesel Oil (Fuel ASTM #2) Hydrocarbons A B A
Diester Synthetic Oils   A
Diethanol Amine (HOCH2CH2)2NH A A
Diethyl Amine (CH3CH2)2NH A A A
Diethyl Ether (Ether) (CH3CH2)2O A X A
Diethyl Phthalate (DEP) C6H4(CO2C2H5)2 A
Diethyl Sebecate C14H26O4 A A 120°F A 120°F
Diethylene Ether (Dioxane) C4H8O2 A
Diethylene Glycol (DEG) HOCH2CH2OCH2CH2OH A A
Diethylene Triamine (NH2C2H4)2NH A
Diisobutyl Ketone C4H9COC4H9 A
Diisobutylene [HC=C(CH3)2]2   A A
Diisooctyl Adipate (DIOA) C22H42O4 A
Diisopropyl Ketone [(CH3)2CH]2CO A
Dimethyl Ether CH3OCH3 B
Dimethyl Phthalate C6H4(CO2CH3)2     A 70°F
Dimethyl Sulfide (CH3)2S A
Dinitrotoluene (DNT) CH3C6H3(NO2)2 A
Dioctyl Phthalate (DOP) C24H38O4 A
Dioctyl Sebecate C26H50O4 A
Dipentene (Limonene) C10H16 A
Diphenyl Oxides (Phenyl Ether)  C6H5OC6H5 A   A
Dipropylene Glycol (C3H6OH)2O   A A
Dispersing Oil #10   A
Dodecyl Benzene (Alkane) C6H5(CH2)11CH3 A
Dowtherm (Biphenyl & Phenyl Ether)  (C6H5)2 and (C6H5)2O  A
Drycleaning Fluids Chlorinated hydrocarbons A X
Dyes   A
Epichlorohydrin C3H5CIO A A X
Epsom Salts  (Magnesium Sulfate) MgSO4  &7H2O A A A
Ethane C2H6 A C
Ethanolamine (Aminoethanol)  H2NCH2 CH2OH  A X C
Ethyl (Ethanol) CH3CH2OH A A 100°F A
Ethyl Acetate CH3COOC  H2CH3 A C A
Ethyl Acetoacetate (Acetoacetic Ester)  CH3COCH2 COOCH2CH3  A   A 70°F
Ethyl Acrylate CH2CHCO2CH2CH3 A B B 70°F
Ethyl Alcohol (Ethanol) CH3CH2OH A A  100°F A
Ethyl Amine (Monoethylamine)  CH3CH2NH2 A
Ethyl Benzene CH3CH2C6H5 B X A
Ethyl Benzoate C6H5CO2CH2CH3 A B
Ethyl Bromide (Bromoethane)  CH3CH2Br A
Ethyl Butyrate CH3CH2CH2 CO2C2H5 A B
Ethyl Cellulose (Ethocel)   B C
Ethyl Chloride  (Chloroethane) C2H5CI A X A
Ethyl Formate HCOOCH2 CH3 B
Ethyl Mercaptan (Ethanethiol)  CH3CH2SH B
Ethyl Propionate CH3CH2  COOCH2CH3 A
Ethyl Silicate Si(OCH2CH3)4 A
Ethylene (Ethene) C2H4 A
Ethylene Chlorohydrin CICH2CH2OH A X A 70°F
Ethylene Diamine (CH2)2(NH2)2 A A B
Ethylene Dibromide (Ethylene Bromide)  Br(CH2)2Br B X A
Ethylene Dichloride (Dutch Oil)  CI(CH2)2CI B X A
Ethylene Glycol (Ethylene Alcohol, Glycol)  (CH2OH)2 A A 120°F A
Ethylene Glycol Monobutyl Ether (Butyl Cellosolve) C4H9OCH2CH2OH A
Ethylene Glycol Monoethyl, Ether Acetate (Cellosol C2H5O(CH2)2  O2CCH3 A
Ethylene Glycol Monomethyl, Ether (Methyl Cellosol CH3O(CH2)2OH A
Ethylene Oxide (CH2)2O A C A
Ethylene Trichloride (Trichloroethene)  CICHCCI2 A X
Ethylhexyl Alcohol (Ethylhexanol)  C8H17OH A
Ethylidene Chloride CH3CHCI2 A
Fatty Acids CnH2n+1COOH A B A
Ferric Chloride FeCI3 X A A
Ferric Hydroxide FeHO2 A
Ferric Nitrate Fe(NO3)3 B A A
Ferric Sulfate Fe2(SO4)3 B A A
Ferrous Chloride FeCI2 B 30% A A
Ferrous Sulfate FeSO4 B A A
Fluoboric Acid HBF4 A 30% A A
Fluorine (Liquid) F2 A X A 70°F
Fluorolube (Fluorocarbon Oils)  FxCyHz A X
Fluosilicic Acid (Sand Acid) H2SiF6 A 212°F A A
Formaldehyde (Formalin) HCHO A 90% A A 120°F
Formamide HCONH2 B
Formic Acid HCOOH C A 70°F A
Freon 11 (Trichlorofluoromethane) CCI3F A B A
Freon 113 (Trichlorotrifluoroethane) (TF) CI3CCF3 A   A
Freon 114 (Dichlorotetrafluoroethane) C2CI2F4 A   A
Freon 114B2 (Dibromotetrafluoroethane)  C2Br2F4     A
Freon 12 (Dichlorodifluoromethane) CI2CF2 A   A
Freon 13 (Chlorotrifluoromethane) CICF3 A
Freon 21 (Dichlorofluoromethane) FCHCI2     A
  HCCIF2 A   A
Fruit Juices Water, sucrose A A A
Fuel Oils (ASTM #1 thru #9) Hydrocarbons A C A
Furfural (Ant Oil) C5H4O2 A 20% X B 120°F
Furfuryl Alcohol C5H6O2 A   B 100°F
Gallic Acid C6H(OH)3 COOH B A 70°F A 70°F
Gasoline (Petrol) Hydrocarbons A C A
Gasoline (Unleaded) C4 TO C12 hydrocarbons A C A
Gelatin Water soluble proteins A A A
Ginger Oil C17H26O4 A
Gluconic Acid C6H12O7 A  50%
Glucose (Corn Syrup) C6H12O6 A A A
Glue   B A
Glycerol (Glycerine) C3H8O3 A A A
Glycolic Acid HOCH2COOH   A A
Glycols   B A A
Grape Juice Water, sucrose A A A
Grapefruit Oil   A
Grease Hydrocarbons A
Green Sulfate Liquor   A A
Heptanal CH3(CH2)5CHO A A
Heptane C7H16 A C 140°F A
Hexanal CH3(CH2)4CHO A
Hexyl (1-Hexanol) C5H11CH2OH A A 70°F A
Hexyl Alcohol (1-Hexanol) C6H13OH A   A
Hexylene Glycol (Brake fluid) C6H12OH A
Honey   A A
Hydraulic Oil (Petroleum base) Hydrocarbons A X
Hydrazine (Diamine) H2NNH2 A X X
Hydrobromic Acid HBr A B A
Hydrochloric Acid 10% (Muratic) HCI X A A
Hydrochloric Acid 20% (Muratic) HCI X A A
Hydrochloric Acid 30% (Conc.) HCI X B A
Hydrocyanic Acid (Formonitrile) HCN A A A
Hydrofluoric Acid (Conc.) Cold HF X X A
Hydrogen Fluoride _ Anhydrous HF X A A
Hydrogen Peroxide _ 10% H2O2 A A A
Hydrogen Peroxide _ 3% H2O2   A A
Hydrogen Peroxide _ 30% H2O2 B A A
Hydrogen Peroxide _ 90% H2O2 A
Hydrogen Sulfide (Wet) H2S A 167°F A A
Hydroquinone C6H4(OH)2 A 10%   A
Hydroxyacetic Acid _ 10% HOCH2COOH B
Hypochlorous Acid HCIO X A A
Ink   A
Iodine I2 X A A 150°F
Iodoform CHI3 A   A
Isoamyl Acetate CH3CO2CH2CH2CH(CH3)2 A
Isoamyl Butyrate C9H18O2 A
Isobutyl (2-Methyl-1-Propanol) C3H7CH2OH A   A
Isobutyl Acetate CH3CO2CH2 CH(CH3)2 A
Isobutyl Alcohol (Isobutanol) (CH3)2 CHCH2OH    A A
Isobutyl Chloride (CH3)2 CHCH2CI B
Isododecane (CH3)2 CH(CH2)8CH3 B
Isooctane (Trimethylpentane)  C8H18 A A A
Isophorone C9H14O A
Isopropyl (2-Propanol) H3CCH(OH)CH3 A A A 150°F
Isopropyl Acetate CH3COOCH(CH3)2 A B
Isopropyl Alcohol (Isopropanol)  CH3CH(OH)CH3 A A A
Isopropyl Amine C3H7NH2 A
Isopropyl Chloride (CH3)2CHCI A X
Isopropyl Ether (CH3)2CHOCH(CH3)2 A X A 170°F
Jet Fuels (JP1 to JP6) (ASTM-A, A1 & B)    A X A
Kerosine (Kerosene) Hydrocarbons A X A
Lacquer Solvents   A C X
Lacquers   A
Lactic Acid CH3CHOHCOOH A 70% A A
Lactol (Aliphatic Naptha Solvent)  CH3CHOH CO2C10H7  A
Lard (Lard Oil) Olein, stearin B A A
Latex Rubber emulsion A A
Lauryl Alcohol (n-Dodecanol)  CH3(CH2)10  CH2OH  A A
Lead Acetate (Sugar of Lead)  Pb(CH3CO2)2 B   A
Lead Chloride PbCI2 B A A
Lead Nitrate Pb(NO3)2 B A A
Lead Sulfamate     A
Lemon Oil (Cedro Oil) Hydrocarbons A
Lignin Liquor Blend of nautal aromatic oils A
Ligroin (Ligroine) (Benzine) Petroleum fraction A X
Lime Bleach     B
Lime Slurries   B
Lime Sulfur CaS+CaSO4 A A
Linoleic Acid C18H32O2 A A A
Linseed Oil (Flaxseed Oil)  Glycerides A A A
Lithium Bromide LiBrH2O     A
Lubricating Oils (Petroleum)  Hydrocarbons A C A
Lye (Potassium Hydroxide) KOH A A A 150°F
Magnesium Carbonate MgCO3 B A A
Magnesium Chloride MgCI2O B 40% A A
Magnesium Hydroxide (Milk of Magnesia)  Mg(OH)2 A A A
Magnesium Nitrate Mg(NO3)2 &6H2O A A A
Magnesium Oxide MgO A
Magnesium Sulfate (Epsom Salts)  MgSO4&7H2O A 40% A A
Maleic Acid (CHCOOH)2 B A A
Maleic Anhydride C4H2O3 A
Malic Acid (Apple Acid) C4H6O5 A
Maple Sugar Liquors (Sucrose)  Water, sucrose A
Mayonnaise Water, fats, oils A A
Mercuric Chloride HgCI2 X A A
Mercuric Cyanide Hg(CN)2 B A A
Mercurous Nitrate Hg(NO3)2 &2H2O B  212°F A A
Mercury Hg A A A
Mesityl Oxide (CH3)2C = CHCOCH3 A
Methane CH4 A B A
Methyl (Methanol) CH3OH A A 120°F A
Methyl Acetate CH3CO2CH3 A C
Methyl Acetoacetate CH3COCH2 COOCH3 A
Methyl Acrylate CH2CHCO2CH3 A   A 70°F
Methyl Alcohol (Methanol) CH3OH A A A
Methyl Amine (Monomethylamine)  CH3NH2 A X C
Methyl Amyl Acetate C8H16O2 A
Methyl Amyl Alcohol C6H13OH A
Methyl Bromide (Bromo Methane)  CH3Br A X A
Methyl Butyl Ketone (2-hexanone)  CH3COC4H9 A X
Methyl Butyrate CH3(CH2)2 CO2CH3 A
Methyl Cellosolve CH3OCH2 CH2OH   A A
Methyl Chloride CH3CI A X A
Methyl Cyclopentane C6H12 A
Methyl Ethyl Ketone (Butanone)  CH3COCH2CH3 A X X
Methyl Formate HCOOCH3 A
Methyl Iodide CH3I A
Methyl Isobutyl Ketone (Hexone)  CH3COCH2CH (CH3)2  B C 70%F A 70°F
Methyl Isopropyl Ketone CH3COCH(CH3)2 A C A 70°F
Methyl Methacrylate CH2C(CH3)CO2CH3 A   A 70°F
Methylamine CH3NH2 A A
Methylene Bromide CH2Br2 A   A
Methylene Chloride CH2CI2 A 90% X B 100°F
Milk   A A A
Mine Water   B
Mineral Oil (Petroleum) Hydrocarbons A B A
Mixed Acids (Sulfuric & Nitric)  H2SO4, HNO3 B X A
Molasses   A A A
Monochlorobenzene C6H5CI A X A 100°F
Monoethanolamine NH2C2H4OH A X X
Mustard   A A
N,N-Dimethyl Formamide (DMF) HCON(CH3)2 A A 120°F A 120°F
N,N-Dimethylaniline C6H5N(CH3)2   X A
Naphtha (Petroleum Spirits) (Thinner)  Petroleum fractions  A X A
Naphtha Coal Tar (Benzol) Hydrocarbons A
Naphthalene (Tar Camphor) C10H8 A A A
Naphthoic Acid C11H8O2 A
n-Butyl Acetate CH3CO2(CH2)3CH3 A
Neatsfoot Oil   A
Neosol   A
n-Hexane C6H14 A C 140°F A
Nickel Acetate Ni(CH3CO2)2 A A A
Nickel Chloride NiCI2 B A A
Nickel Nitrate Ni(NO3)2&6H2O A A A
Nickel Sulfate NiSO4 A  40% A A
Nitrana (Ammonia Fertilizer)   A
Nitric Acid (Conc.) HNO3 A X A 120°F
Nitric Acid (Red Fuming)   A X C
Nitric Acid _ 10% HNO3 A A A
Nitric Acid _ 25% HNO3 A 30% A A
Nitric Acid _ 35% HNO3 A 40% B A
Nitric Acid _ 50% HNO3 A C A
Nitric Acid _ 70% HNO3 A   A
Nitrobenzene C6H5NO2 A B A 70°F
Nitroethane C2H5NO2 A C A 70°F
Nitrogen Tetroxide N2O4 A X C
Nitromethane CH3NO2 A C A 120°F
n-Octane C8H18   X A
n-Propyl Acetate CH3COO(CH2)2CH3 A C A
o-Chlorophenol C6H5CIO B   A
Octyl (Caprylic Alcohol) C7H15 CH2OH  A
Octyl Acetate CH3COO(CH3)7CH3 A
o-Dichlorobenzene C6H4CI2 B B A 150°F
Oleic Acid (Red Oil) C18H34O2 B B A
Oleum (Fuming Sulfuric Acid) H2SO4/SO3 A X X
Olive Oil Mixed glycerides of acids A A A
Oxalic Acid (COOH)2 B 90% A A 120°F
Ozone O3 A X A
Paint Thinner, DUCO Hydrocarbons A X
Paints & Solvents   A
Palm Oil Mixture of terpenes A
Palmitic Acid CH3(CH2)14  COOH A A A
Paraffins (Paraffin Oil) Hydrocarbons A A
Paraformaldehyde (CH2O)n A
Paraldehyde C6H12O3 A
Peanut Oil Glycerides of fatty acids A A 70°F A
Pentachloroethane (Pentalin)  CI2 CHCCI3  A
Pentachlorophenol (PCP) C6CI5OH A
Pentane (Amyl Hydride) C5H12 B
Peppermint Oil   A
Perchloric Acid HCIO4 B   A
Perchloroethylene (Tetrachloroethylene)  C2CI4 A 90% X A
Petroleum (Crude Oil) (Sour)  Hydrocar
